R146C is the dirt separator that makes installation and maintenance easy while offering multiple combined options for cleaning: classic filtering, magnetic action, and cyclonic effect.
It is a must-have to maintain the efficiency of a thermal system by preventing failures or improper performance of the boiler and circulators caused by impurities in the hydraulic circuit water.
Many boiler manufacturers provide datasheets or compliance provisions for use of the filters and dirt separators, and warranty purposes.
The 3/4” magnetic separator is the ideal solution for installation under the boiler in upgrading systems with new condensation boilers and limited space available.

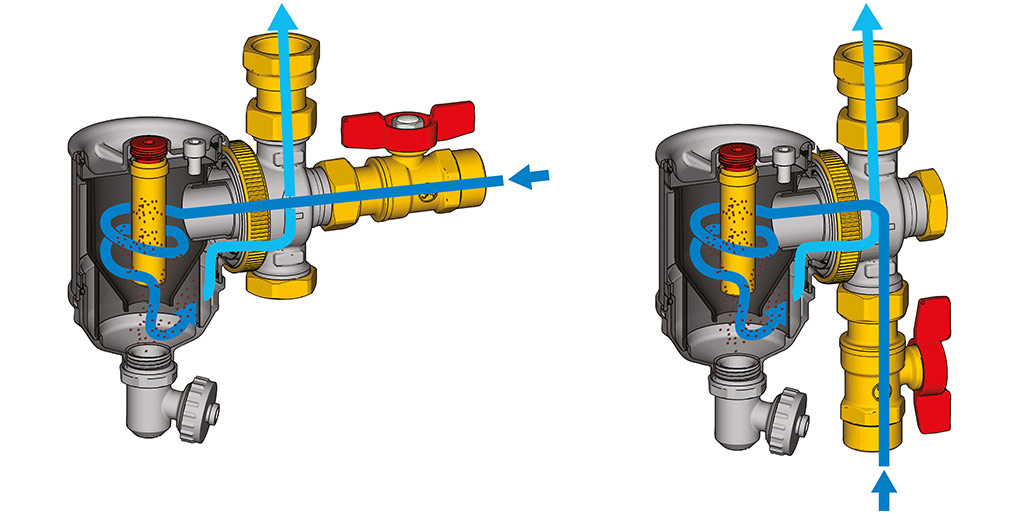

The powerful magnet captures the iron debris while the stainless-steel mesh provides a typical filtering action. But there is more… The cyclonic action amplifies the sedimentation and cleaning effect. A special insert placed right inside the brass body forces the water flow through a vortex (in a cyclonic-like motion) which pushes the solid particles to the sides by centrifugal force and then makes them drop to the bottom by gravity. After reaching the bottom of the vortex, the fully-cleaned water flows up and out of the dirt separator, while the residues collect on the bottom of the device.
The adjustable side fitting unit (patented) makes the connection between the boiler and the system easier under any condition. Plus, the adjustable drain cock simplifies periodical purging.
