Dual regulation scale (High and Low), hermetic seal, first-class reliability, extreme compactness: these are the exclusive characteristics of the new patented R206A PICV (Pressure Independent Control Valve).
R206A PICV valves control and maintain the flow rate when the differential pressure values change inside the hydraulic circuit, thus guaranteeing top-notch comfort and energy efficiency.

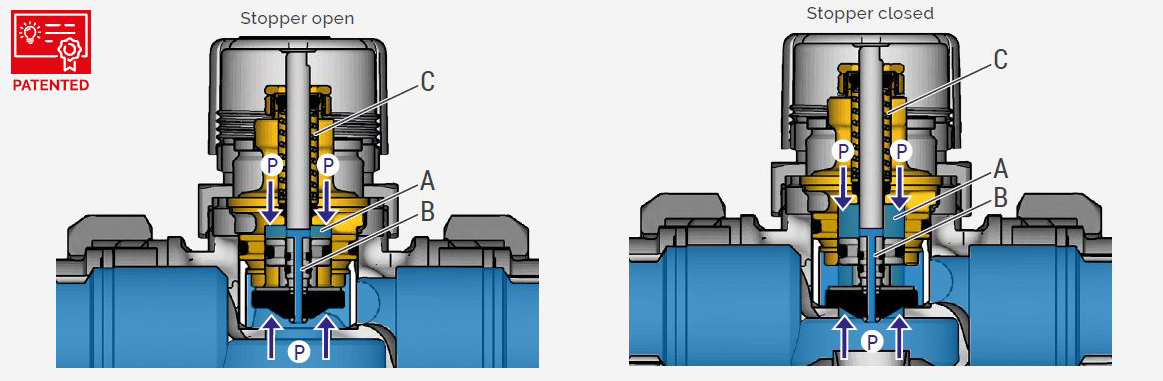

Inside the R206A PICV is a bonnet with a pressure compensation system

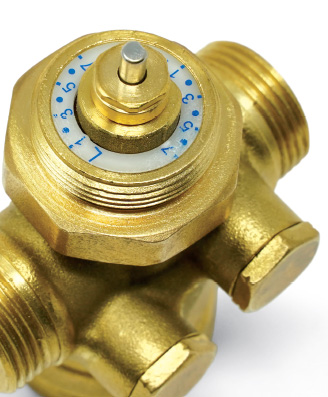

The dual flow regulation scale is the second patent for the R206A PICV: Low (L) for low rates, High (H) for high rates. In short, the R206A valve consists of two valves integrated in the same body to select the desired flow rate without replacing the valve.
The user can change the regulation scale whenever desired, also while the system is running.
The dual scale makes planners and installers’ work much easier: it guarantees greater precision when setting the flow as the range of the controlled flow rate is smaller; it sensibly reduces the number of models required on catalog or stock; it limits the risk of errors when ordering, delivering, and installing the valve.
