Smarter thermoregulation devices wired to the network – i.e., the bus – for data exchange with properly encoded messages.
The modular bus system can control basic mixing units when heating and cooling or more complex residential and service-sector buildings with air treatment systems for dehumidification, cooling integration, air exchange and HRV.
This flexible system enables to set up different login profiles and exploit the most advanced technologies in terms of domotic control.

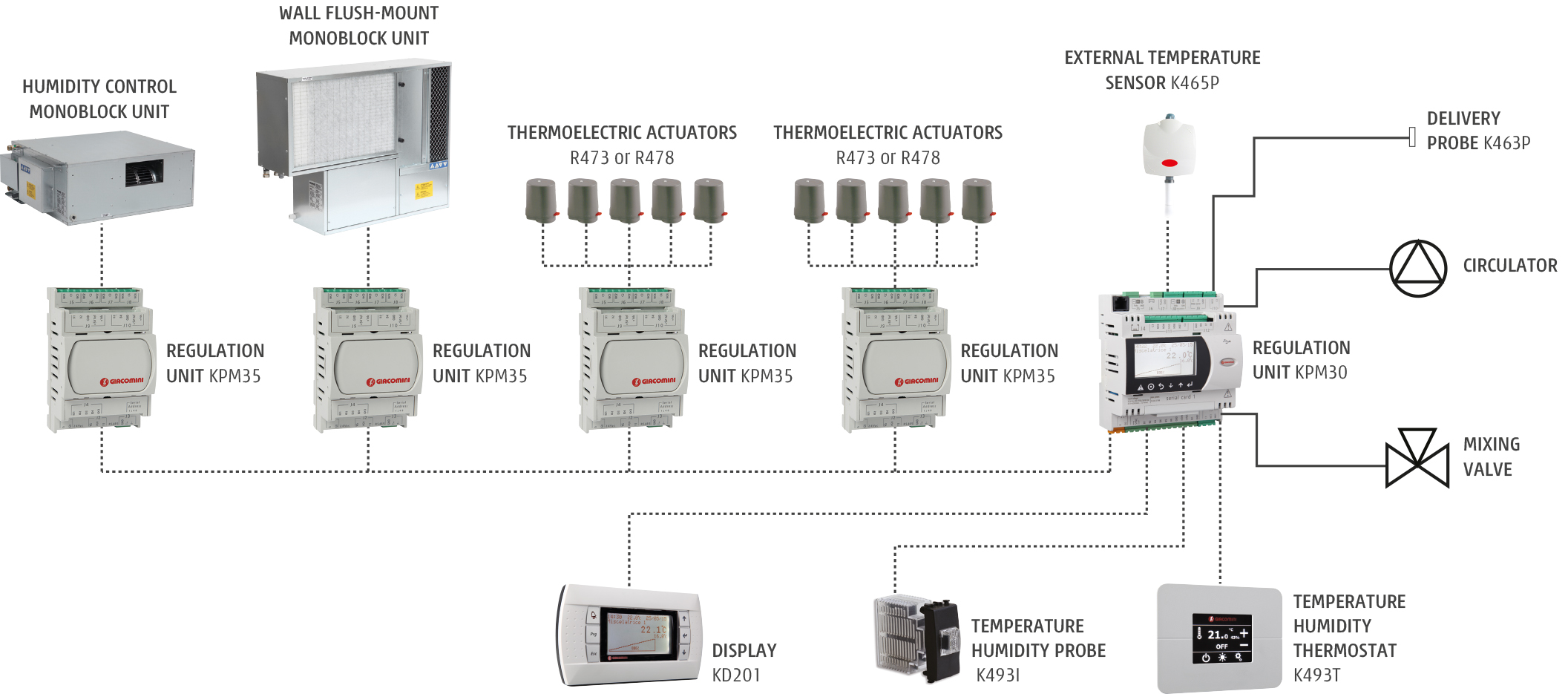

Typical diagram of Klimabus thermoregulation
The KPM30 control module and its KPM35 expansion represent the core of Giacomini’s thermoregulation system. Here are their distinctive characteristics in a nutshell:
Here are their distinctive characteristics in a nutshell:
The modular system enables to size the installation at best and easily extend it according to the client’s actual needs.
The system can be configured for a variety of control methods (fixed-point or climate compensation), thus efficiently meeting the requirements of different types of buildings. The applications are easy to set up through guided menus for simplified installation and start up.
The wide range of available data and the possibility to interface the bus system on site or remotely offer new opportunities to enhance its operation and maintenance as well as the management of events and alarms.
Every device can communicate on the bus making it possible to set up centralized functions. Plus, the end user, service operator or owner can display more information. Possible connectivity with the main control protocols available on the market. KLIMAbus is compatible with domotic communication standards, such as Modbus and KNX, and with building automation systems such as BacNet.
The “smarter” devices improve the level of comfort while controlling individually each room to achieve the highest degree of energy saving.
