From zero to comfort in 20 minutes

The Spider system by Giacomini revolutionizes radiant heating and cooling, primarily addressing the challenge of thermal inertia—a critical factor that affects the responsiveness and efficiency of heating systems. By significantly reducing the thickness required for installation, the Spider system offers a solution that improves energy efficiency, enhances comfort, and shortens the time required to change indoor temperatures. This article will explore the Spider system’s benefits, with a particular emphasis on the concept of low thermal inertia and its impact on modern building systems.

Understanding Thermal Inertia

Thermal inertia refers to the ability of a material to absorb and release heat. In radiant heating systems, materials with high thermal inertia, such as thick layers of concrete, absorb and store large amounts of heat but are slow to release it. This results in delayed heating or cooling responses and limits the system's ability to quickly adapt to temperature changes.

For modern energy-efficient buildings, the ability to control and regulate indoor temperatures quickly is essential. Systems with low thermal inertia respond rapidly to changes in demand, allowing for more precise control over the indoor climate. This reduces energy waste and improves overall comfort, especially in environments with frequent temperature fluctuations.

Spider System and Low Thermal Inertia

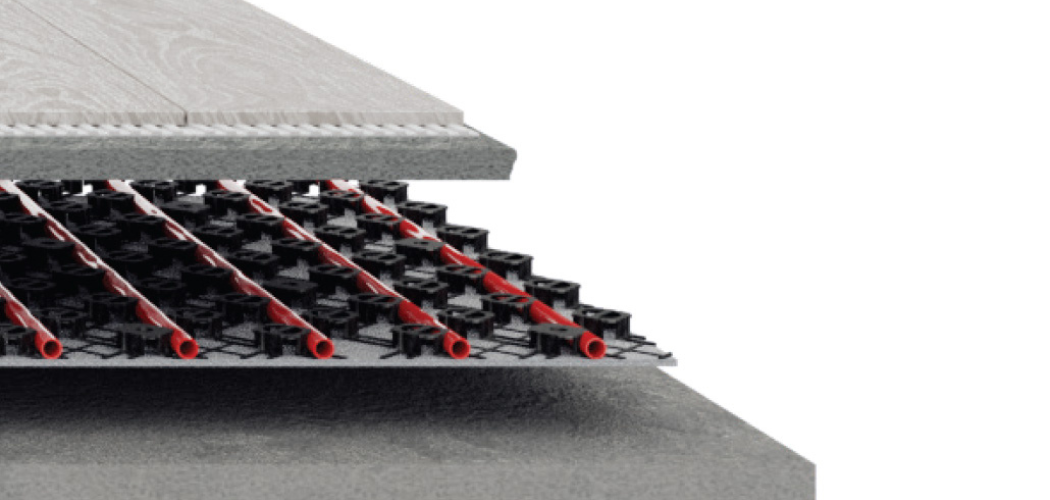

The Spider system from Giacomini addresses the thermal inertia problem by reducing the thickness of the materials involved in radiant installations. It uses a three-dimensional polypropylene grid panel, which allows for the installation of a thinner mortar layer—typically between 20 to 25 mm. This thinner layer ensures that the heat generated by the system is transferred more quickly to the floor or wall surfaces, significantly reducing the time it takes to heat or cool a space.

By utilizing a thinner layer of mortar, the system ensures that less material needs to be heated, resulting in faster thermal response times. Traditional systems, which require thicker layers of material, often have delayed reactions to temperature adjustments, wasting energy and reducing comfort in the process. The Spider system’s low thermal inertia design offers a more efficient alternative.

Benefits of Low Thermal Inertia in the Spider System

1. Rapid Temperature Adjustment The primary benefit of low thermal inertia is the quick response time. In buildings with traditional high-inertia systems, heating and cooling adjustments can take hours, as the system must first heat or cool large masses of material before the indoor temperature changes. With the Spider system, the thin mortar layer responds almost immediately to adjustments, leading to faster heating or cooling.
2. Improved Energy Efficiency Reducing thermal inertia also results in improved energy efficiency. By reducing the amount of material that needs to be heated or cooled, the system uses less energy to achieve the desired temperature. This is especially beneficial in buildings with variable occupancy patterns, where heating and cooling demand fluctuates throughout the day.

In typical radiant systems, the high thermal inertia can lead to overshooting temperatures—by the time the material has absorbed enough heat, the room may already be warmer than necessary. With low thermal inertia, the system can shut off heating or cooling earlier, as the thinner layer of mortar doesn’t store as much residual heat, preventing unnecessary energy consumption.

3. Comfort and Control User comfort is greatly enhanced by low thermal inertia. When a system can quickly adjust to temperature changes, occupants experience more consistent and comfortable indoor environments. With traditional systems, occupants often have to plan ahead—turning on heating or cooling long before they need it. The Spider system provides more control over the indoor climate, reacting almost in real-time to thermostat adjustments.
4. Sustainability and Reduced Environmental Impact The energy savings achieved through low thermal inertia have a direct impact on sustainability. By using less energy, buildings equipped with the Spider system can reduce their carbon footprint. Additionally, the system’s efficient use of materials—requiring thinner layers of mortar—means that less raw material is used during construction, further contributing to environmental conservation.

Applications of the Spider System

The Spider system is particularly well-suited for environments where low thermal inertia is essential. These include:

• Residential buildings where occupants need rapid temperature adjustments, especially in climates with wide daily temperature variations.
• Commercial spaces such as offices or retail stores, where energy efficiency and comfort are key priorities.
• Renovation projects where floor height is limited and traditional radiant systems would be impractical.

The ability to install the system with a low profile—due to its reduced thickness—makes it an ideal choice for renovations where existing structures limit the ability to raise the floor or wall thickness.

Installation Process and Thermal Responsiveness

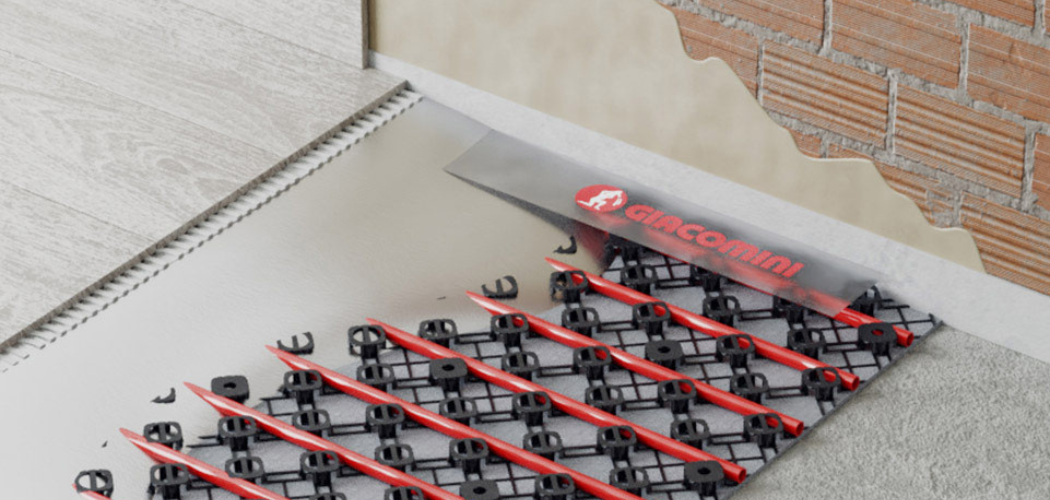

The installation of the Spider system is straightforward, with the polypropylene grid panels laid directly on the substrate, followed by the embedding of the radiant heating pipes in a thin layer of mortar. The reduced thickness of this layer is crucial for minimizing thermal inertia, allowing for faster heat transfer from the pipes to the surface.

Once the system is operational, the thin mortar layer ensures that the heat or cooling generated is quickly delivered to the living space. This quick responsiveness is the hallmark of a low thermal inertia system, providing significant advantages over traditional high-inertia installations.

Future of Low Thermal Inertia Systems

As energy efficiency standards become increasingly stringent, systems like Spider that leverage low thermal inertia will play a critical role in sustainable building design. The ability to control indoor environments more precisely, reduce energy consumption, and enhance comfort makes these systems an attractive option for both residential and commercial applications.

With rising energy costs and a growing focus on reducing carbon footprints, the adoption of low thermal inertia systems such as the Spider will likely increase in the coming years. These systems not only meet today’s energy efficiency demands but also offer long-term benefits in terms of comfort, cost savings, and environmental impact.

Closing Thoughts on Low Thermal Inertia and the Spider System

The Spider system by Giacomini offers a powerful solution for modern radiant heating and cooling needs, particularly by focusing on low thermal inertia. Its innovative design addresses the limitations of traditional high-inertia systems, providing faster temperature adjustments, improved energy efficiency, and greater comfort. As sustainability becomes a priority in building design, systems like Spider will continue to set the standard for efficient, eco-friendly heating and cooling solutions.
