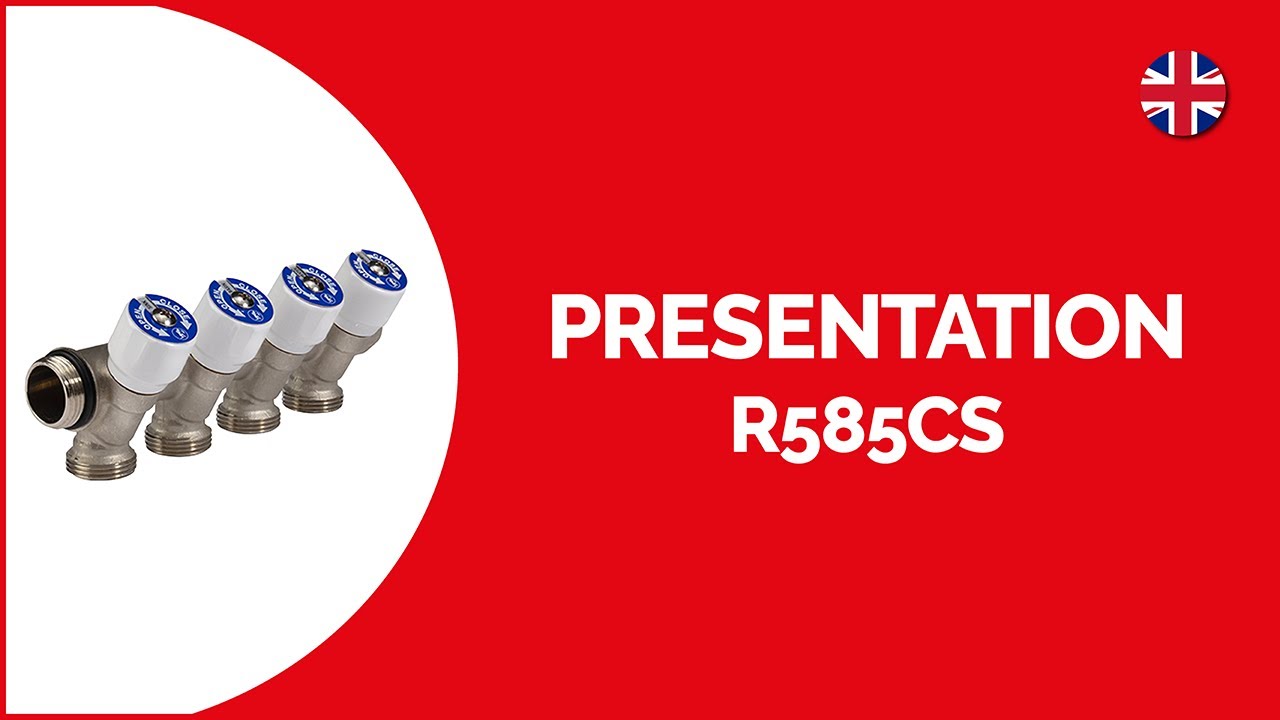

Modular brass manifold with shut-off valves and seal O-Ring for domestic water systems. Nickel plated brass finishing.
Temperature range: 5÷110 °C
Max. working pressure: 10 bar
Outlets center distance: 40 mm
Completion codes
- R599: plastic cabinet with lid, depth 90 mm
- R598K: pair of plastic supports for R599 cabinet
- R584: plastic cabinet with lid and supports, depth 86 mm
- R592DCS: end plug in chrome-plated brass, male thread
- R594CS: end cap in chrome-plated brass, female thread
- R179E: 3/4”E adaptors for plastic or multilayer pipes
- R178E: 3/4”E adaptors for copper pipes
- RM179E: multi-jaw straight press fitting for plastic or
multilayer pipes with 3/4”E nut
- Shut-off ball valves
| Code | Size |  |
 |
BIM(revit) | CAD(dxf) | Certification |
|---|---|---|---|---|---|---|
| R585CSX122 | 3/4" x 3/4"E /2 | 1 | 36 | - | - | |
| R585CSX123 | 3/4" x 3/4"E /3 | 1 | 28 | - | - | |
| R585CSX124 | 3/4" x 3/4"E /4 | 1 | 22 | - | - | |
| R585CSX142 | 1" x 3/4"E /2 | 1 | 30 | - | - | |
| R585CSX143 | 1" x 3/4"E /3 | 1 | 28 | - | - | |
| R585CSX144 | 1" x 3/4"E /4 | 1 | 22 | - | - |
