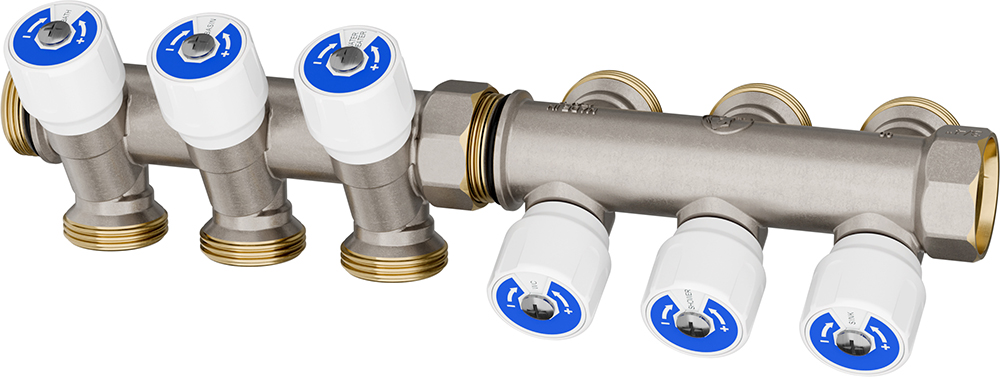

Giacomini’s R585CS and R580CS modular manifolds, with and without shut-off valves, for domestic water systems are designed to streamline at best installation work while offering a simple and quick assembly also in confined spaces. Threads phasings enables to perfectly align manifolds which can be assembled tool-free.

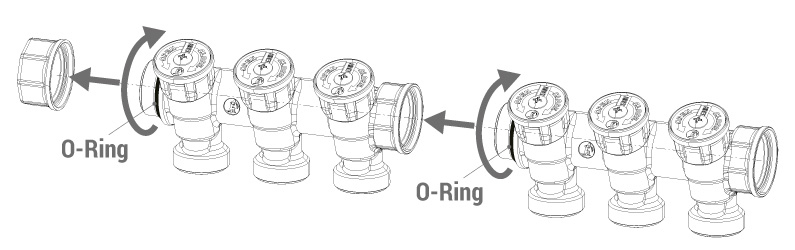

Plus, the preassembled O-Ring on the male thread ensures proper sealing with no need for additional elements such as hemp or PTFE.

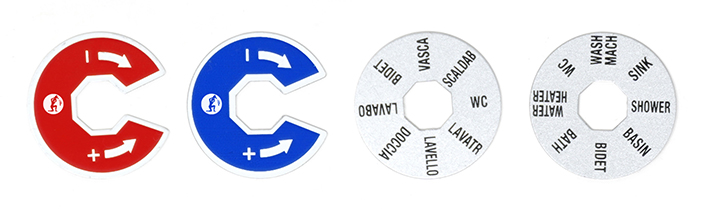

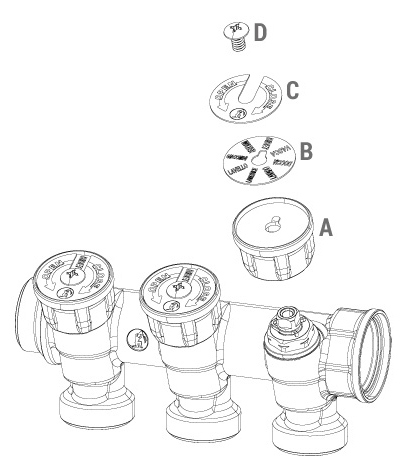

The handwheels (A) are connected to the shut-off cock with a screw (D) and include two metal plates:
This enables to streamline the quantity of stocked products.

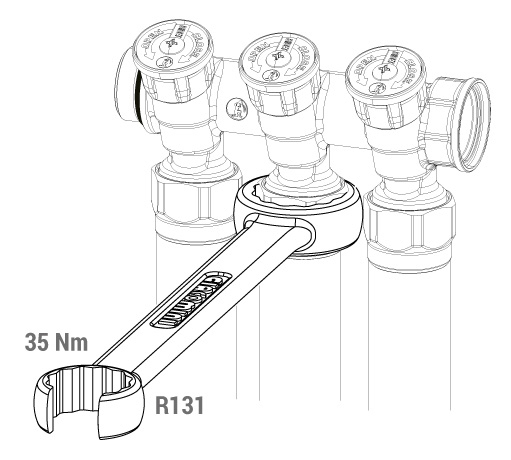

Available in two versions (G 3/4" x 3/4"E’ and G 1" x 3/4"E) with 2, 3 or 4 outlets, the R585CS and R580CS modular manifolds are compatible with up to 20 mm pipes via compression fittings: the 40 mm center distance allows for easy connection using the R131 wrench.
Quick and simple tool-free installation.
No need for additional sealing elements such as hemp or PTFE thanks to the preassembled O-Ring.
The assembly of the manifolds inside the R595-1 cabinet using the appropriate R598K sliding supports is carried out using horizontal guide rails, and therefore without constraints on positioning.
Thanks to the large openings at the bottom of the cabinet, it is possible to install manifolds with different center distances.

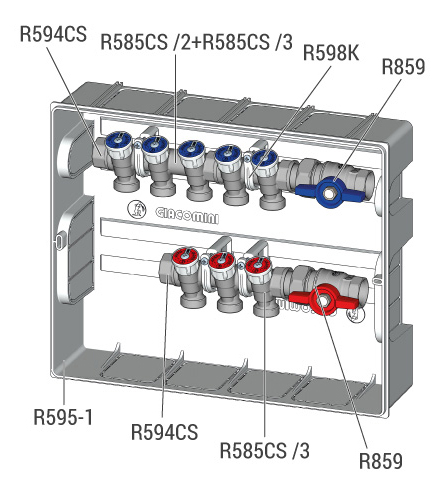

The example image shows the R585CS manifolds with R594CS end caps and R859 ball valves, installed in the R595-1 cabinet.
For cold domestic water are used two R585CS manifolds with 2 and 3 outlets, mounted in series with each other.
For hot domestic water is used a R585CS manifold with 3 outlets.
